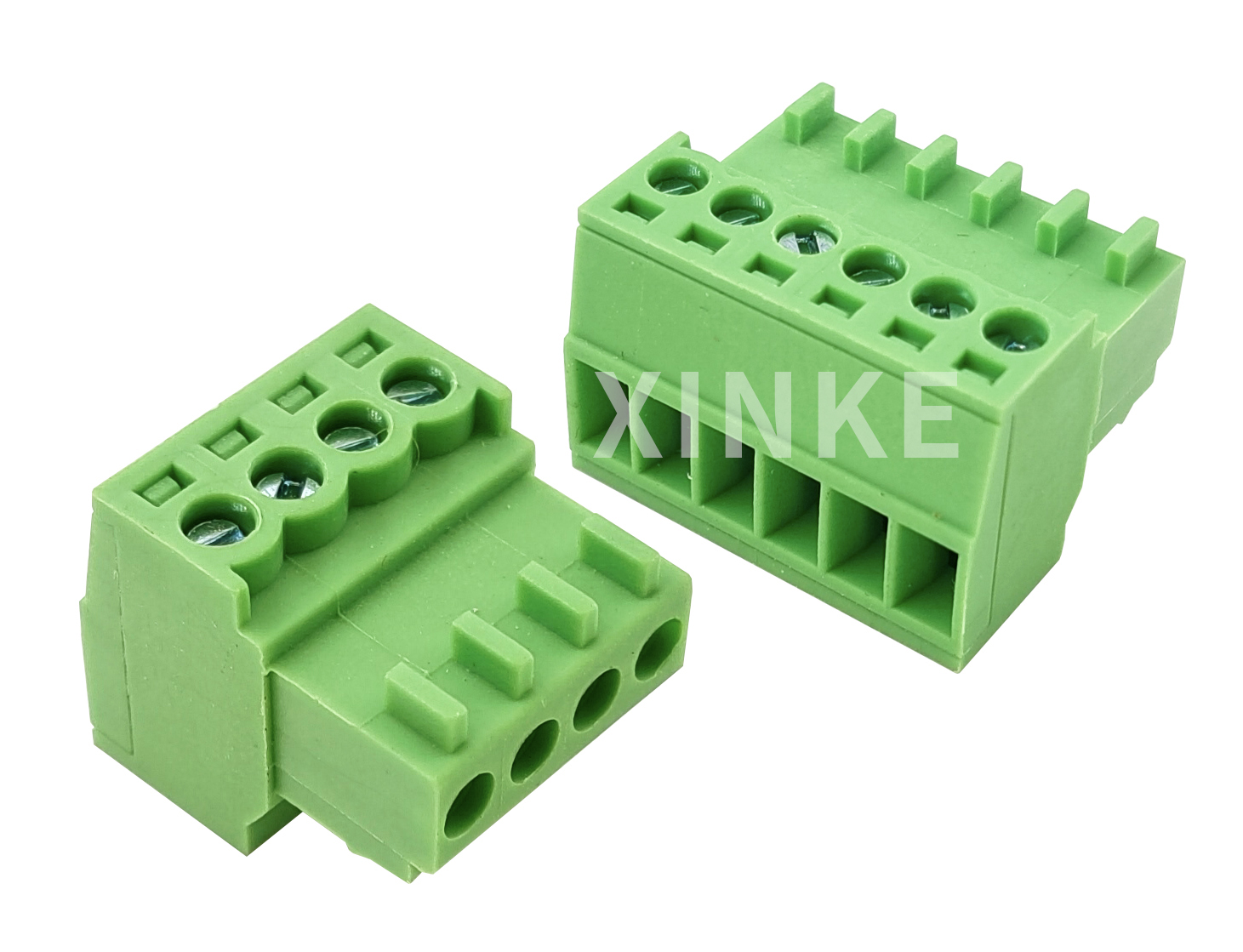

XK15EDGK-2.54
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
電氣性能/Electrical Specification |
|
|
額定電壓：125V |
ated voltage：125V |
|
額定電流：4A |
Rated current：4A |
|
耐電壓：1250V/ 1Min |
Withstanding voltage：1250V/ 1Min |
|
導線線徑：28-20AWG (0.5MM2) |
Wire range：28-20AWG (0.5MM2) |
|
額定沖擊電壓：2.5KV |
Rated impulse voltage: 2.5KV |
|
機械性能/Mechanical Specification |
|
|
環境溫度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剝線長度：5-6MM |
Strip length：5-6MM |
|
螺絲/扭矩：M1.6/0.1N.M |
Screw/Torque：M1.6/0.1N.M |
|
材質及電鍍/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
夾子：磷青銅，鍍鎳 |
Contact：Phosphor Bronze,Ni plated |
|
方塊：黃銅，鍍鎳 |
Wire cage：Brass,Ni plated |
|
螺絲：M1.6,鋼,鍍鋅 |
Screw：M1.6,Steel,Zinc plated |
|
間距：2.54MM |
Pitch：2.54MM |
|
極數：2-16P |
Poles：2-16P |
