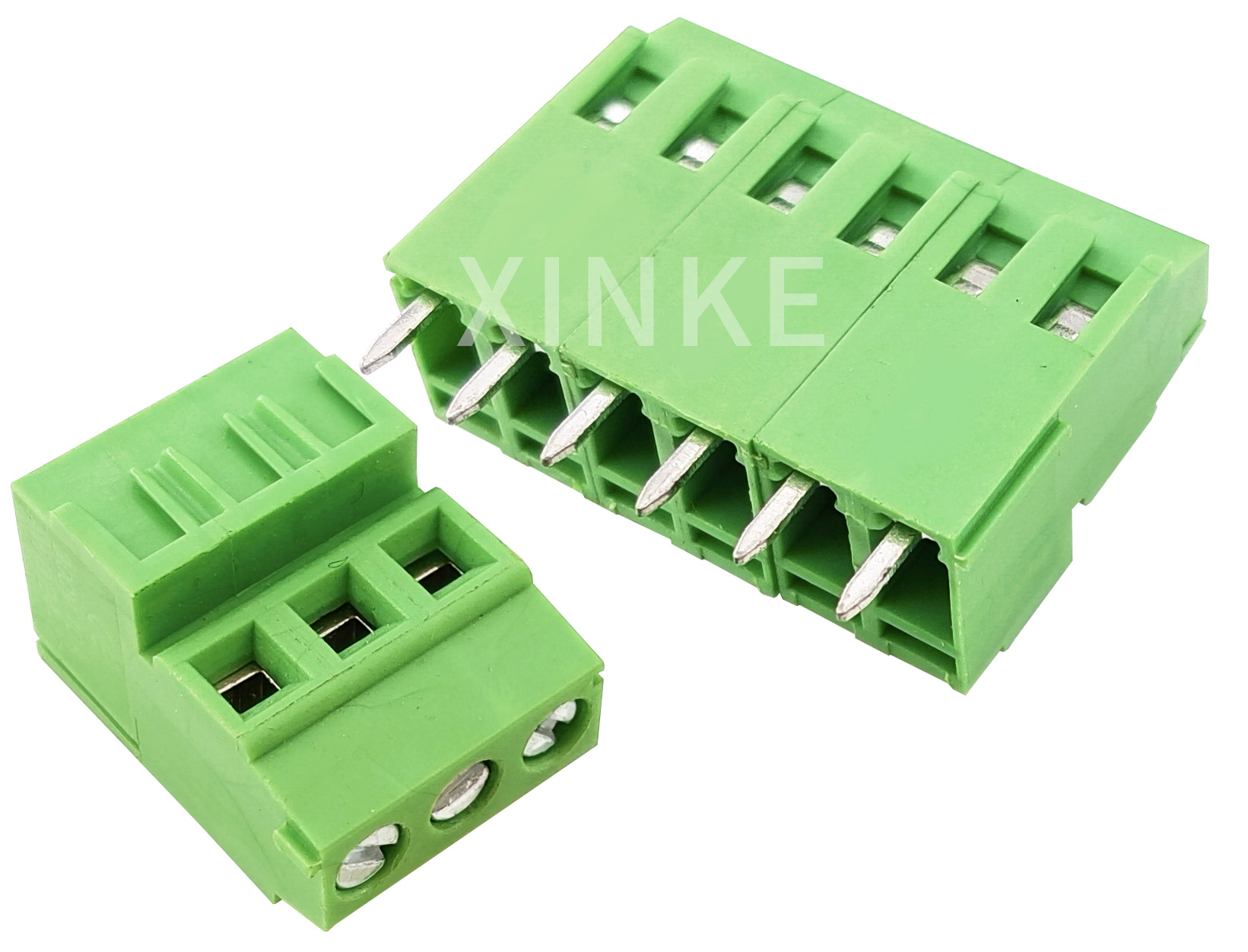

XK128H-3.81
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
電氣性能/Electrical Specification |
|
|
額定電壓：300V |
ated voltage：300V |
|
額定電流：10A |
Rated current：10A |
|
耐電壓：1600V/ 1Min |
Withstanding voltage：1600V/ 1Min |
|
導線線徑：26-16AWG (1.0MM2) |
Wire range：26-16AWG (1.0MM2) |
|
額定沖擊電壓：2.5KV |
Rated impulse voltage: 2.5KV |
|
機械性能/Mechanical Specification |
|
|
環境溫度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剝線長度：5-6MM |
Strip length：5-6MM |
|
螺絲/扭矩：M2.0/0.2N.M |
Screw/Torque：M2.0/0.2N.M |
|
材質及電鍍/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
焊針：黃銅，鍍錫 |
Pin header：Brass,Tin plated |
|
方塊：黃銅，鍍鎳 |
Wire cage：Brass,Ni plated |
|
螺絲：M2.0,鋼,鍍鋅 |
Screw：M2.0,Steel,Zinc plated |
|

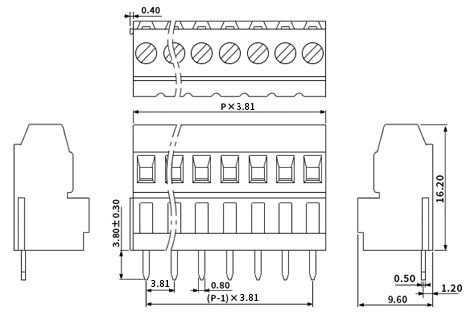

間距：3.81MM |
Pitch：3.81MM |
|
極數：2-XXP |
Poles：2-XXP |
