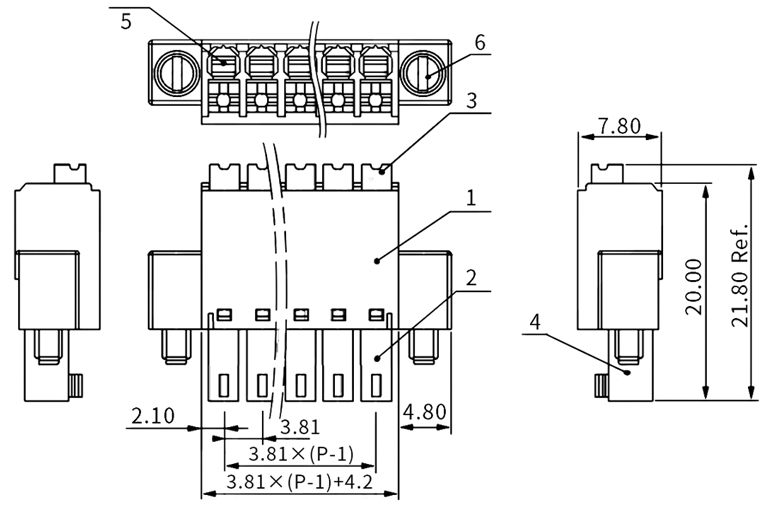

XK15EDGKNM-3.81
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
Poles：2-24P
電氣性能/Electrical Specification
額定電壓：300V
ated voltage：300V
額定電流：8A
Rated current：8A
耐電壓：1600V/ 1Min
Withstanding voltage：1600V/ 1Min
導線線徑：28-16AWG (1.5MM2)
Wire range：28-16AWG (1.5MM2)
額定沖擊電壓：2.5KV
Rated impulse voltage: 2.5KV
機械性能/Mechanical Specification
環境溫度：-40℃~+105℃
Temp range：-40℃~+105℃
剝線長度：8-9MM
Strip length：8-9MM
螺絲/扭矩：-
Screw/Torque：-
材質及電鍍/Material and Plating
塑件：PA66.UL94V-0
Housing：PA66.UL94V-0
夾子：磷青銅，鍍鎳
Contact：Phosphor Bronze,Ni plated
簧片：不銹鋼
Reed：Stainless steel
螺絲：M2.5,鋼，鍍鋅
Screw：M2.5,Steel,Zinc plated
間距：3.81MM
Pitch：3.81MM
極數：2-24P
